Product Description:

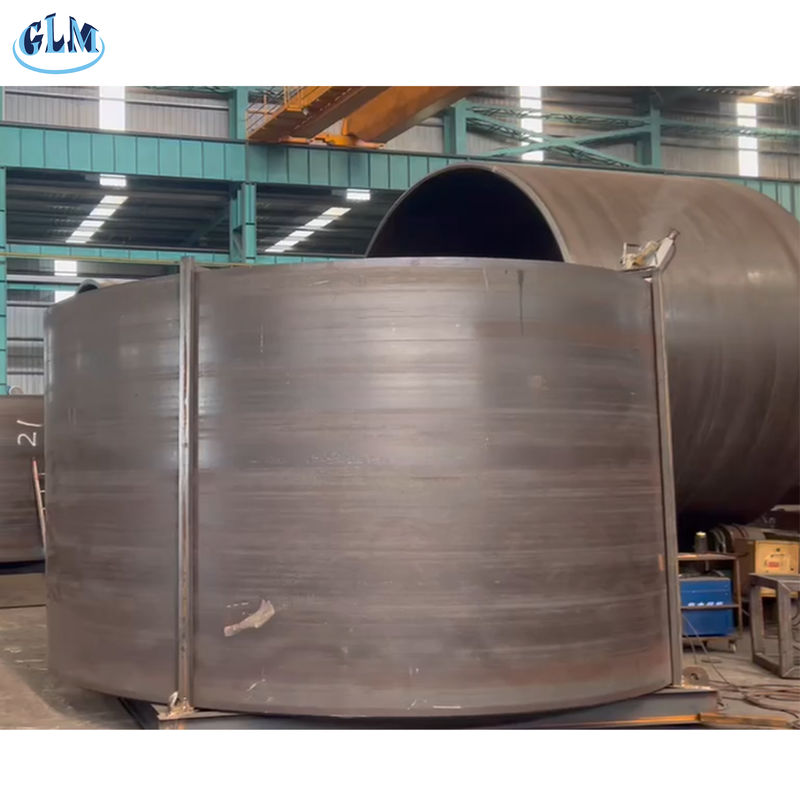

Forming process: Metal plates (e.g., carbon steel, stainless steel) are shaped into a cylindrical structure using mechanical rolling (cold rolling for thin plates ≤12mm, hot rolling for thick plates ＞12mm). The rolling ensures uniform curvature to avoid local deformation.
Dimensional precision: Inner/outer diameter, wall thickness, and straightness meet industry standards (e.g., GB 150, ASME BPVC), with typical diameter tolerances of ±1‰ to ensure compatibility with dish heads (e.g., elliptical heads) at both ends.
High pressure-bearing capacity: The cylindrical shape evenly distributes internal/external pressure (lower stress concentration than rectangular structures), suitable for low-to-high pressure scenarios (0.1MPa–10MPa).
Technical Parameters:
| Technics |
Forged |
| Package |
Wooden Case, Pallet, Etc. |
| Application |
Boiler, Heat Exchanger, Power, Etc. |
| Vessel Head Thickness |
According To Customer Requirements |
| Product Name |
Steel Tank Cylinder Shell Rolled, Heavy Thick Tight Steel Rolling |
| Certificate |
ISO9001, PED, Etc. |
| Grade |
Carbon Steel, Aluminum, Stainless Steel SA240 316/316L |
| Forming method |
Hot Forming, Cold Forming |
| Vessel Head Diameter |
According To Customer Requirements |
| Head Type |
Steel Tank Cylinder Shell Rolled |
Applications:
The following industries benefit from our products and services:
- Oil & Gas
- Chemical & Petrochemical Industries
- Offshore
- Cryogenic Industry
- Pharmaceutical Industry
- Food & Beverage
- Water Treatment
- Desalination Plants
- Storage & Transport
- Pulp & Paper
- Mining
- Power Generation
- LNG Industry
- Nuclear & Aerospace Industries
Products:
FAQ:
Q: What is the brand name of the Pressure Vessel Dished Head product?
A: The brand name is GLM.
Q: What is the model number of the Pressure Vessel Dished Head product?
A: The model number is Cap.
Q: Where is the Pressure Vessel Dished Head product manufactured?
A: The product is manufactured in China.
Q: What certifications do the Pressure Vessel Dished Head product have?
A: The product is certified with ASME U, U3, U2, PED, ABS, TUV, NB, and ISO.
Q: What is the minimum order quantity for the Pressure Vessel Dished Head product?
A: The minimum order quantity is 1.
